Earthing System installations

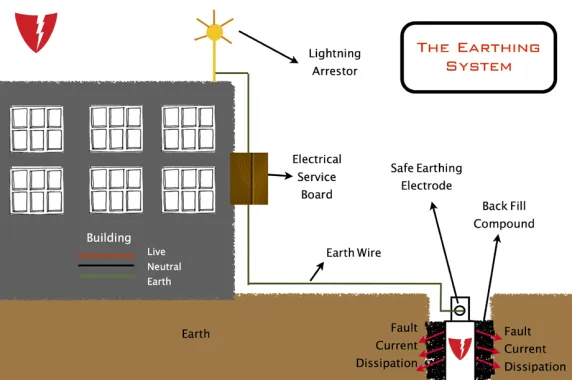

To ensure safety, earthing can be done by connecting the electrical appliance to earthing systems or electrodes placed near the soil or below the ground level. The electrode or earthing mat equipped with a flat iron riser is installed under the ground level.

One of the conventional methods of installing earthing is to bury a conductive plate in the ground and connect it to the earthing circuitry. The plate is typically installed vertically, edge-wise at a depth of 8 feet, with a galvanized iron (GI) strip running to the surface for connections.
